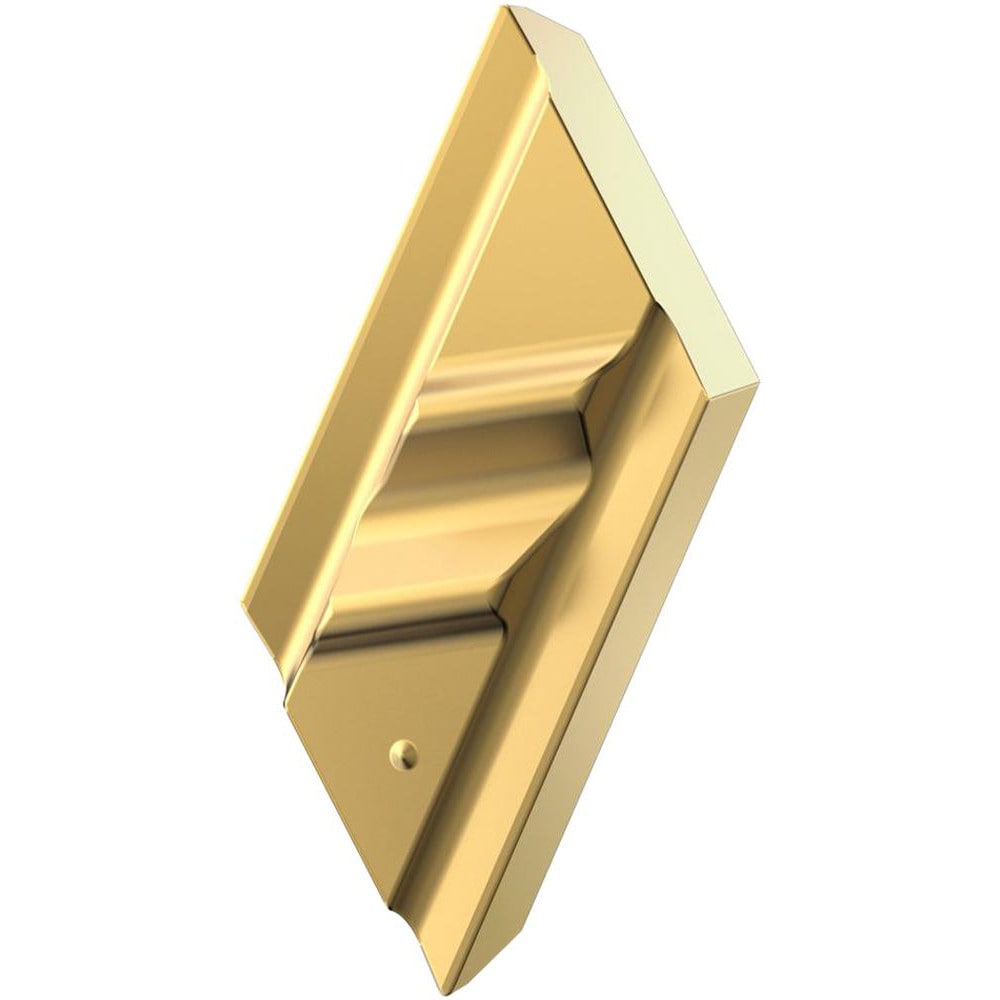

Profiling Insert: NPL505 KCP25C
Item #: 84456151
Brand: Kennametal
Model #: 7088185
Product Specifications
| Insert Style | KCGX |
| Insert Size Code | 110301 |
| Insert Material | Carbide |
| Width (Inch) | 1/4 |
| Manufacturer Grade | KCP25C |
| Thickness (Inch) | 1/8 |
| Insert Height (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.1800 |
| Insert Height (mm) | 3.18 |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 3.18 |
| Insert Holding Method | Clamp |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0050 |
| Corner Radius (mm) | 0.13 |
| Included Angle | 55.00 |
| Relief Angle | 8.000 |
| Chipbreaker | 15 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Series | KCGX |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4566 |
| Insert Length (mm) | 11.60 |
| Number Of Cutting Edges | 2 |
| Iso Code | KCGX110301L15 |
| Rake Angle | 10.000 |
| Shape | Parallelogram |
| Coating/Finish | MT-TiCN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Width (mm - 2 Decimals) | 6.35 |
| UNSPSC Code | 23242105 |
| Country of Origin | UNITED STATES |
