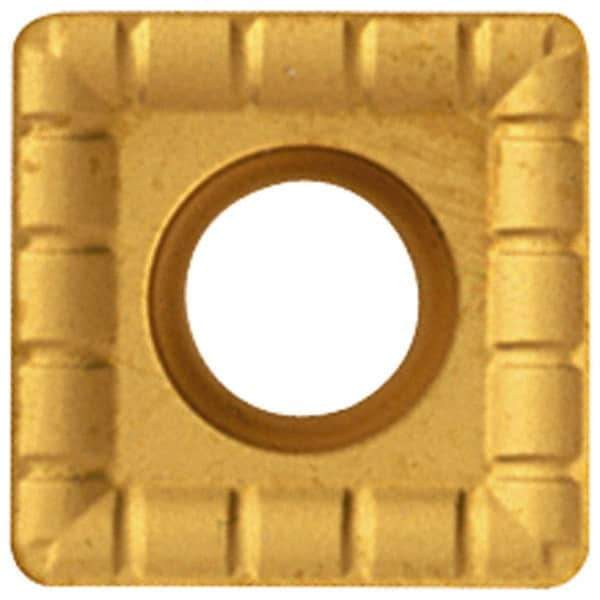

Kennametal - SPGT060304 MDT Grade KC720 Carbide Indexable Drill Insert - TiN Finish, Square, 6.35mm Inscribed Circle
Item #: 75816645
Brand: Kennametal
Model #: 1157974
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Insert Style | SPGT |
| Insert Size | 060304 |
| Material | Carbide |
| Material Grade | C1/C5 |
| Manufacturer's Grade | KC720 |
| Inscribed Circle (mm) | 6.35 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.40 |
| Shape | Square |
| Relief Angle | 11 |
| Included Angle | 90 |
| Coating | TiN |
| Coating Process | PVD |
| Chipbreaker | MDT |
