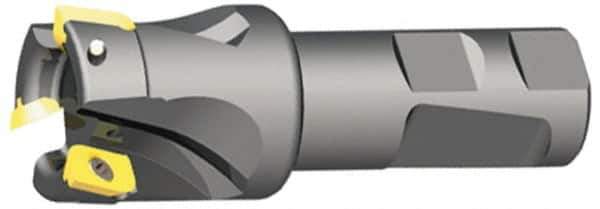

Kennametal - 2" Cut Diam, 0.404" Max Depth of Cut, 1" Shank Diam, 4.03" OAL, Indexable Square Shoulder End Mill - LFEW 252... Inserts, Cylindrical Shank, 0° Lead Angle
Item #: 75817122
Brand: Kennametal
Model #: 1025689
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 4.0300 |
| Lead Angle | 0 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.4040 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | KISR |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.7500 |
| Weldon Flat | No |
| Insert Compatibility | LFEW 252... |
| Maximum RPM | 12250 |
