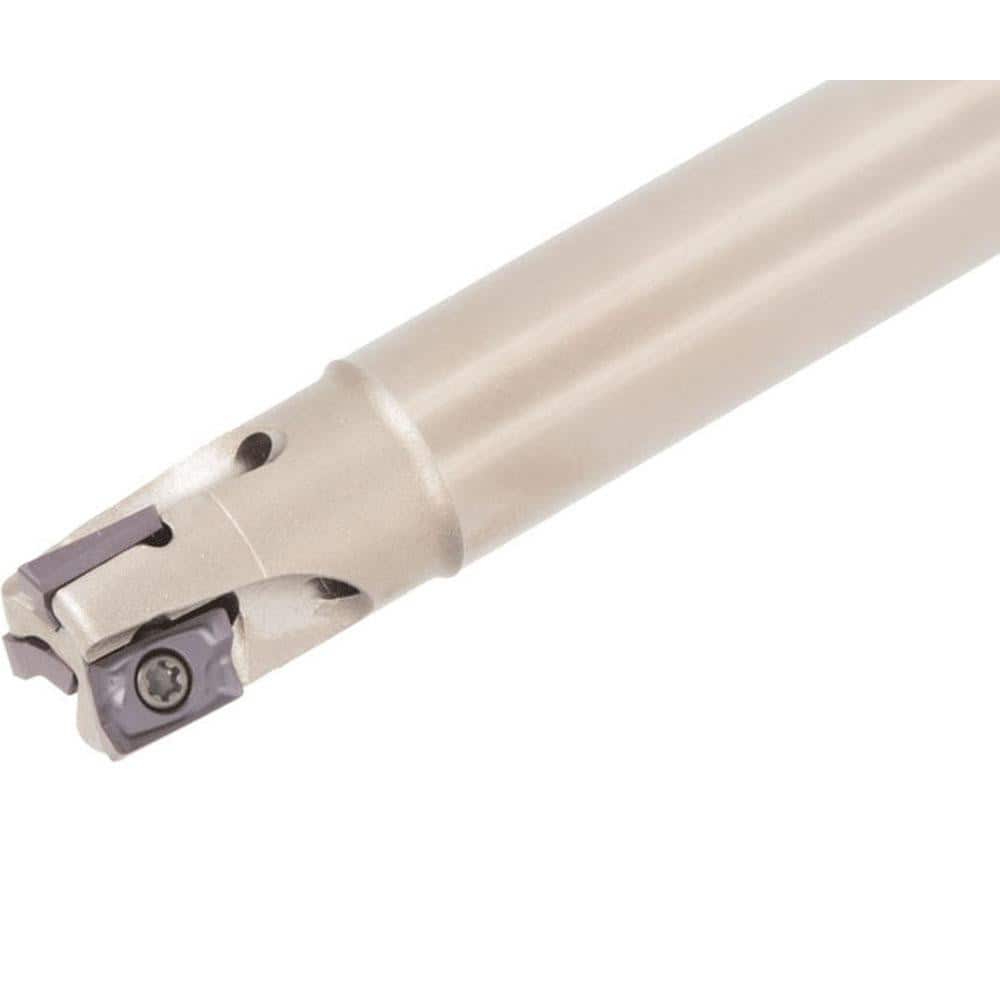

Indexable Square-Shoulder End Mill: EPAV06M020C20.0R04L, 20.0000'' Shank Dia, Straight Shank Uses 4, Normal Pressure, 200.00 mm OAL
Item #: 75945428
Brand: Tungaloy
Model #: 6769890
Product Specifications
| Minimum Cutting Diameter (mm) | 20.00 |
| Maximum Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Cutter Style | EPAV |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 20.0000 |
| Shank Diameter (Inch) | 20 |
| Maximum Ramping Angle | 1.4 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 200.00 |
| Tool Material | Steel |
| Series | EPAV |
| Lead Angle | 90 |
| Shank Length (mm) | 165.00 |
| Head Length (mm) | 35.00 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 200.000 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Normal Pressure |
