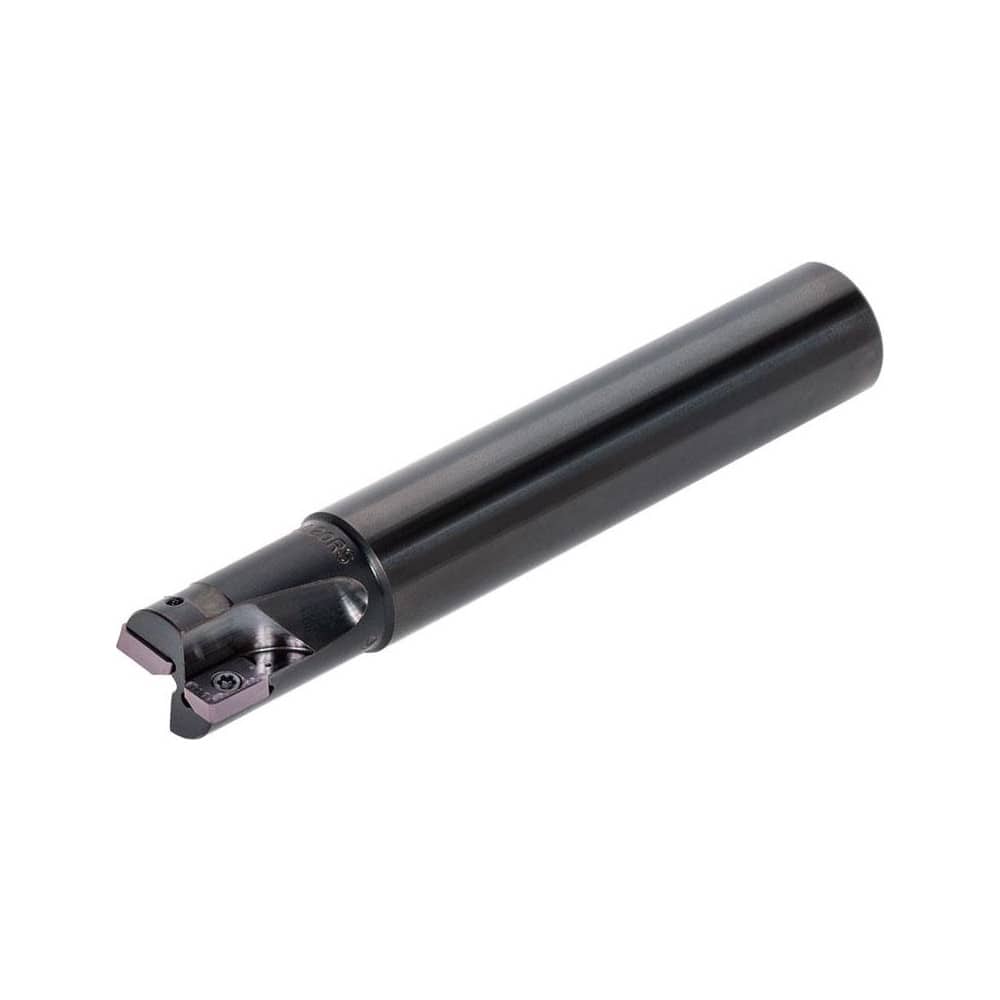

Indexable Square-Shoulder End Mill: EVX12025RL, 25.0000'' Shank Dia, Straight Shank Uses 2, No, 220.00 mm OAL
Item #: 75945436
Brand: Tungaloy
Model #: 6815323
Product Specifications
| Minimum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 11.50 |
| Cutter Style | EVX |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 25.0000 |
| Shank Diameter (Inch) | 25 |
| Maximum Ramping Angle | 3 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 220.00 |
| Tool Material | Steel |
| Series | EVX |
| Lead Angle | 90 |
| Shank Length (mm) | 150.00 |
| Head Length (mm) | 70.00 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 220.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
