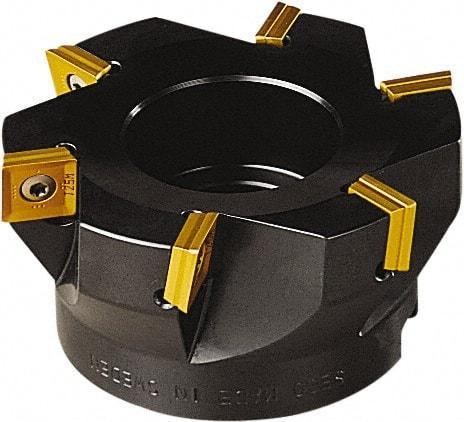

Seco - 6 Inserts, 80mm Cut Diam, 27mm Arbor Diam, 11mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 50mm High, SONX 1205 Insert Compatibility, Series Midi Square
Item #: 76000470
Brand: Seco
Model #: 05602
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | SONX 1205 |
| Series | Midi Square |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutting Rake Angle | -6 |
| Rake | Negative |
| Hub Diameter (mm) | 62.00 |
| Hub Diameter (Decimal Inch) | 2.4409 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Maximum RPM | 8400 |
| Pitch | Normal |
| Complete Insert Compatibility | SONX 120508TR-M12; SONX 120508TR-ME08 |
