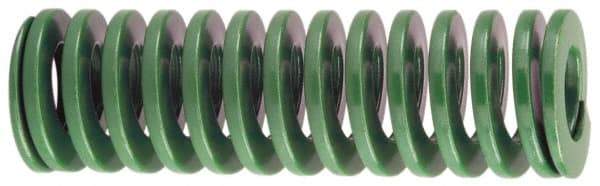

Dayton Lamina - 5/8" Hole Diam, 11/32" Rod Diam, 4" Free Length, Green Die Spring - 4.7 Lb Max Deflection, 1.61" Max Deflection, Light Duty, Chromium Vanadium Steel
Item #: 76010495
Brand: Dayton Lamina
Model #: 9-1016-11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 5/8 |
| Rod Diameter (Inch) | 11/32 |
| Free Length (Inch) | 4 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (Lb.) | 4.70 |
| Maximum Deflection (Decimal Inch) | 1.6100 |
| Travel To Solid Load (Decimal Inch) | 2.4200 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
