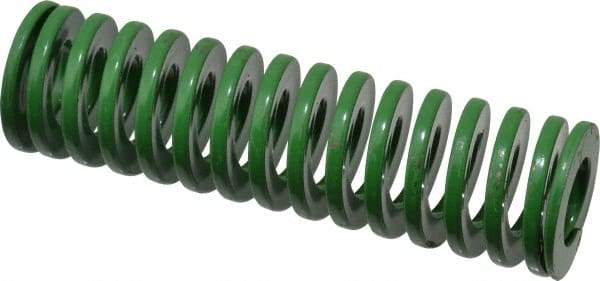

Dayton Lamina - 1" Hole Diam, 1/2" Rod Diam, 3-1/2" Free Length, Green Die Spring - 14.1 Lb Max Deflection, 1.4" Max Deflection, Light Duty, Chromium Vanadium Steel
Item #: 76010883
Brand: Dayton Lamina
Model #: 9-1614-11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1 |
| Rod Diameter (Inch) | 1/2 |
| Free Length (Inch) | 3-1/2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (Lb.) | 14.10 |
| Maximum Deflection (Decimal Inch) | 1.4000 |
| Travel To Solid Load (Decimal Inch) | 1.7800 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
