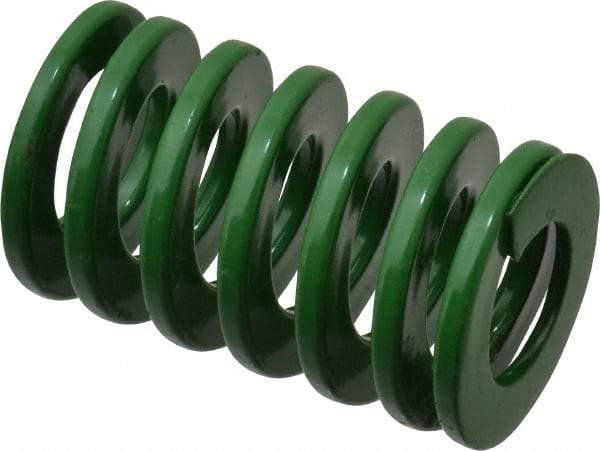

Dayton Lamina - 1-1/4" Hole Diam, 5/8" Rod Diam, 2" Free Length, Green Die Spring - 40.7 Lb Max Deflection, 0.8" Max Deflection, Light Duty, Chromium Vanadium Steel
Item #: 76011030
Brand: Dayton Lamina
Model #: 9-2008-11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (Lb.) | 40.70 |
| Maximum Deflection (Decimal Inch) | 0.8000 |
| Travel To Solid Load (Decimal Inch) | 0.9600 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
