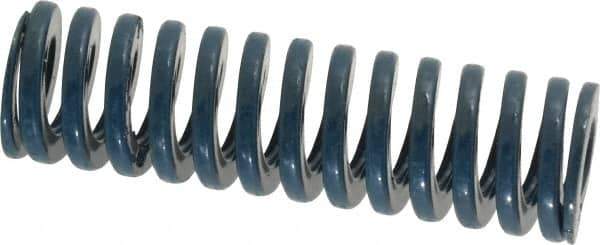

Dayton Lamina - 3/4" Hole Diam, 3/8" Rod Diam, 2-1/2" Free Length, Blue Die Spring - 17.3 Lb Max Deflection, 0.94" Max Deflection, Medium Duty, Chromium Vanadium Steel
Item #: 76012665
Brand: Dayton Lamina
Model #: 9-1210-21
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/4 |
| Rod Diameter (Inch) | 3/8 |
| Free Length (Inch) | 2-1/2 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (Lb.) | 17.30 |
| Maximum Deflection (Decimal Inch) | 0.9400 |
| Travel To Solid Load (Decimal Inch) | 1.0200 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
