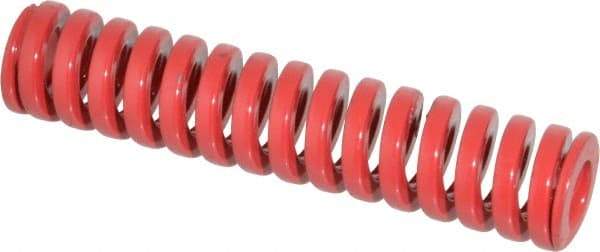

Dayton Lamina - 3/4" Hole Diam, 3/8" Rod Diam, 3-1/2" Free Length, Red Die Spring - 30.8 Lb Max Deflection, 1.05" Max Deflection, Heavy Duty, Chromium Vanadium Steel
Item #: 76014687
Brand: Dayton Lamina
Model #: 9-1214-26
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/4 |
| Rod Diameter (Inch) | 3/8 |
| Free Length (Inch) | 3-1/2 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (Lb.) | 30.80 |
| Maximum Deflection (Decimal Inch) | 1.0500 |
| Travel To Solid Load (Decimal Inch) | 1.1300 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
