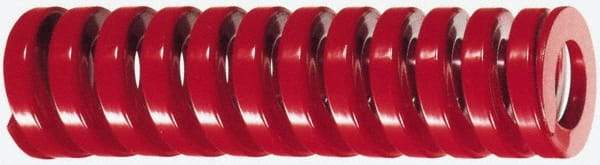

Dayton Lamina - 1-1/4" Hole Diam, 5/8" Rod Diam, 12" Free Length, Red Die Spring - 21.8 Lb Max Deflection, 3.6" Max Deflection, Heavy Duty, Chromium Vanadium Steel
Item #: 76015155
Brand: Dayton Lamina
Model #: 9-2048-26
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 12 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (Lb.) | 21.80 |
| Maximum Deflection (Decimal Inch) | 3.6000 |
| Travel To Solid Load (Decimal Inch) | 4.2000 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
