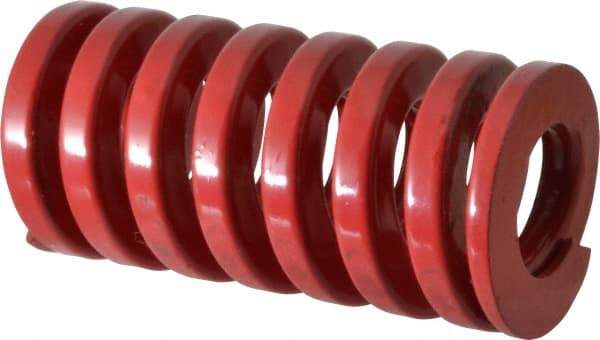

Dayton Lamina - 1-1/2" Hole Diam, 3/4" Rod Diam, 3" Free Length, Red Die Spring - 125 Lb Max Deflection, 0.9" Max Deflection, Heavy Duty, Chromium Vanadium Steel
Item #: 76015239
Brand: Dayton Lamina
Model #: 9-2412-26
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 3 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (Lb.) | 125.00 |
| Maximum Deflection (Decimal Inch) | 0.9000 |
| Travel To Solid Load (Decimal Inch) | 1.0000 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
