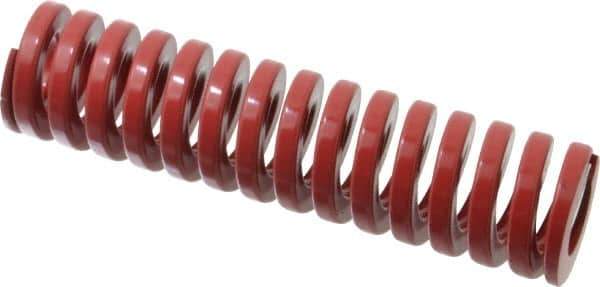

Dayton Lamina - 1-1/2" Hole Diam, 3/4" Rod Diam, 6" Free Length, Red Die Spring - 59 Lb Max Deflection, 1.8" Max Deflection, Heavy Duty, Chromium Vanadium Steel
Item #: 76015296
Brand: Dayton Lamina
Model #: 9-2424-26
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 6 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (Lb.) | 59.00 |
| Maximum Deflection (Decimal Inch) | 1.8000 |
| Travel To Solid Load (Decimal Inch) | 2.1800 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
