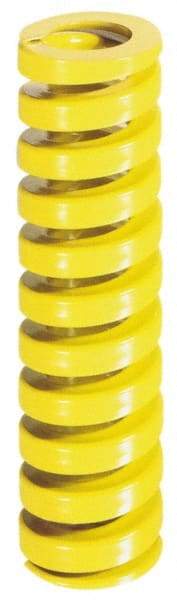

Dayton Lamina - 1-1/4" Hole Diam, 5/8" Rod Diam, 4-1/2" Free Length, Yellow Die Spring - 77.5 Lb Max Deflection, 1.12" Max Deflection, Extra Heavy Duty, Chromium Vanadium Steel
Item #: 76017086
Brand: Dayton Lamina
Model #: 9-2018-36
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 4-1/2 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (Lb.) | 77.50 |
| Maximum Deflection (Decimal Inch) | 1.1200 |
| Travel To Solid Load (Decimal Inch) | 1.3800 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
