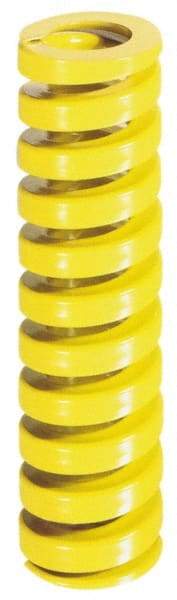

Dayton Lamina - 1-1/2" Hole Diam, 3/4" Rod Diam, 12" Free Length, Yellow Die Spring - 42.8 Lb Max Deflection, 3" Max Deflection, Extra Heavy Duty, Chromium Vanadium Steel
Item #: 76017334
Brand: Dayton Lamina
Model #: 9-2448-36
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 12 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (Lb.) | 42.80 |
| Maximum Deflection (Decimal Inch) | 3.0000 |
| Travel To Solid Load (Decimal Inch) | 3.9400 |
| Wire Shape | D-Shaped |
| Material | Chromium Vanadium Steel |
