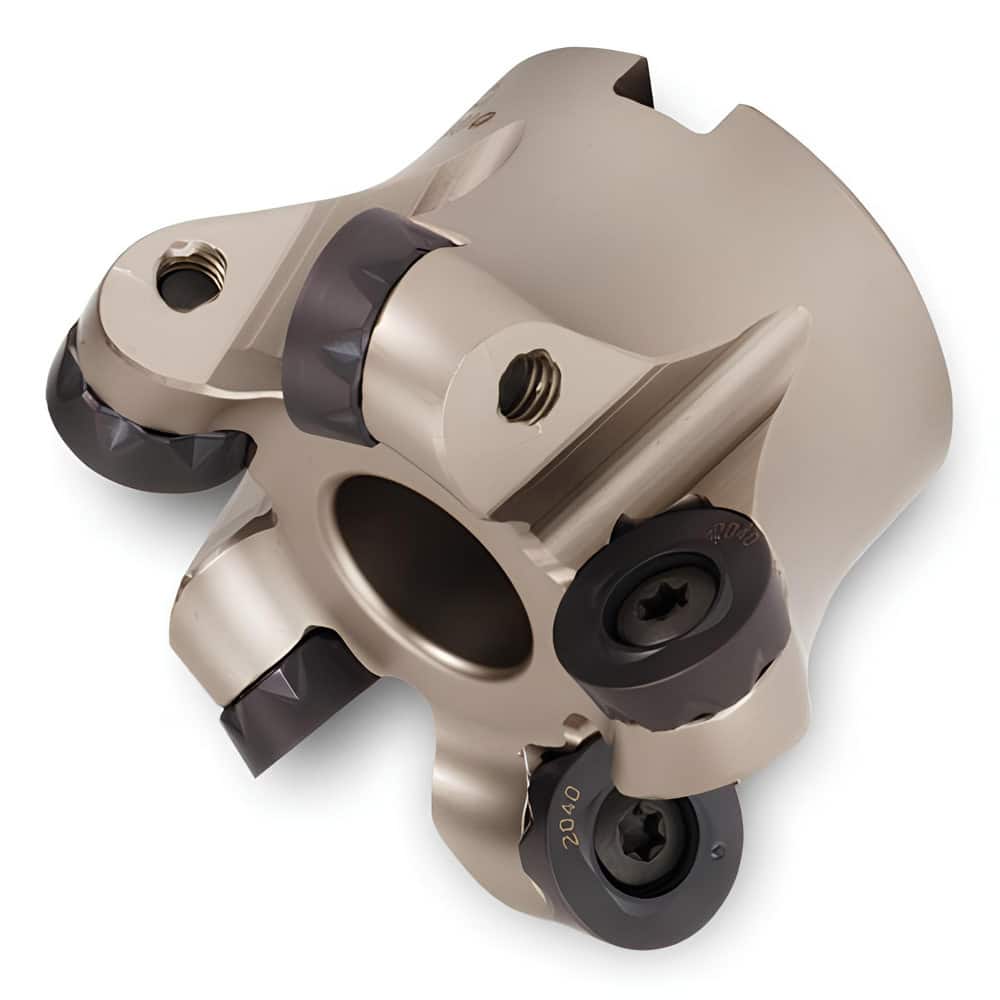

Indexable Copy Face Mills; Maximum Depth Of Cut: 0.3750 in; Compatible Insert Size Code: RCL.1906; Arbor Hole Diameter (mm): 1.50; Maximum Ramping Angle: 4.5 ™; Overall Height (mm): 2.4800 in; Series: 5W6N; Number of Cutter Inserts: 6; Cutter Style: 5W6N
Item #: 76230531
Brand: Ingersoll Cutting Tools
Model #: 3024076
Product Specifications
Maximum Depth Of Cut | 0.3750 in |
Compatible Insert Size Code | RCL.1906 |
Arbor Hole Diameter (mm) | 1.50 |
Maximum Ramping Angle | 4.5 ? |
Overall Height (mm) | 2.4800 in |
Series | 5W6N |
Number of Cutter Inserts | 6 |
Cutter Style | 5W6N |
Keyway Width | 15.8800 |
Tool Application | Facing; Plunging; Pocketing; Ramping; Shouldering |
Tool Performance | General Purpose |
Primary Workpiece Material | Universal |
Through Coolant | Normal Pressure |
Insert Holding Method | Screw |
Keyway Width (Decimal Inch) | 15.8800 |
Cutting Direction | Right Hand |
Maximum Cutting Diameter (Decimal Inch) | 4.0000 in |
Minimum Cutting Diameter (Decimal Inch) | 3.2500 in |
