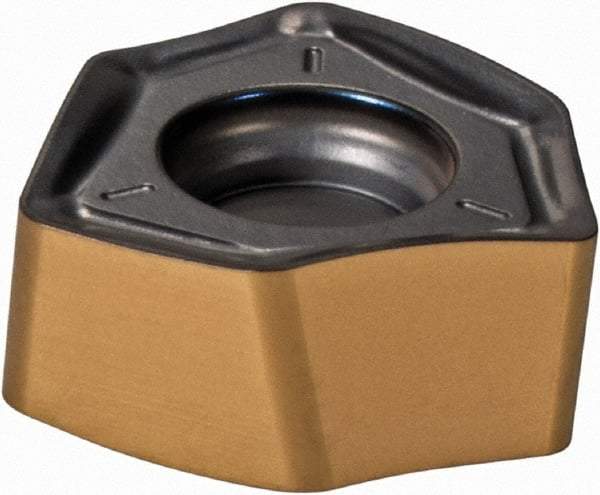

Iscar - H600 WXCU080612 T Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 0.268" Thick, 0.537" Inscribed Circle, 1.19mm Corner Radius
Item #: 76373984
Brand: Iscar
Model #: 5606036
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H600 WXCU |
| Insert Size | 080612 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Length (Decimal Inch) | 0.3460 |
| Inscribed Circle (Decimal Inch) | 0.5370 |
| Thickness (Decimal Inch) | 0.2680 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.19 |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Trigon |
| Chipbreaker | T |
| Manufacturers Catalog Number | H600 WXCU 080612T |
