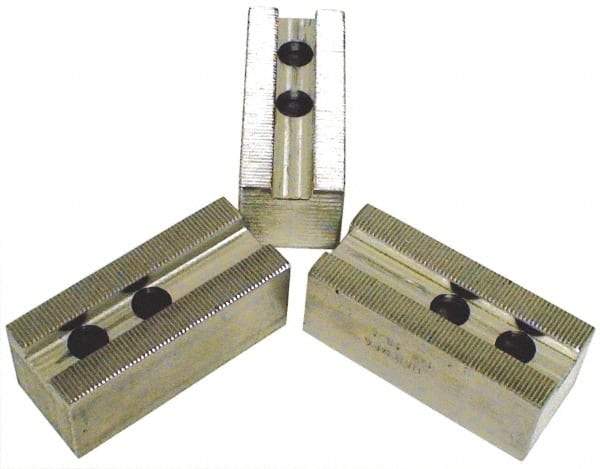

H & R Manufacturing - 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw - 3 Jaws, Aluminum, 1.69" Btw Mount Hole Ctrs, 6-1/2" Long x 2-1/2" Wide x 5" High, 0.866" Groove, 20mm Fastener
Item #: 76554716
Brand: H & R Manufacturing
Model #: HR-155-5.0-A
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Aluminum |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 15 |
| Minimum Compatible Chuck Diameter (Inch) | 15 |
| Overall Height (Inch) | 5 |
| Groove Width (Decimal Inch) | 0.8660 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.6900 |
| Jaw End Shape | Square |
| Fastener Size (mm) | 20 |
| Number of Jaws | 3 |
| Overall Width/Diameter (Inch) | 2-1/2 |
| Overall Length (Inch) | 6-1/2 |
| Material Grade | 6061 |
