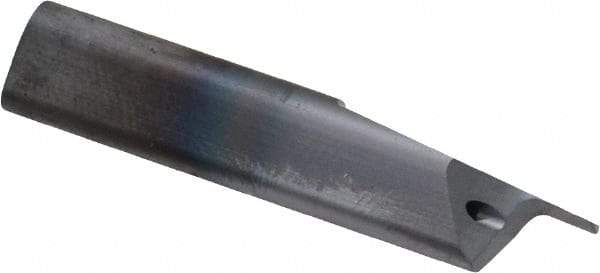

HORN - 0.062" Groove Width, 0.315" Min Hole Diam, 0.591" Max Hole Depth, Face Grooving Tool - 0.118" Projection, 1.378" OAL, 0.006" Radius, Solid Carbide, TiN Finish
Item #: 77420792
Brand: HORN
Model #: RU105.08622.8T1
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Groove Width (Decimal Inch) | 0.0620 |
| Projection (Decimal Inch) | 0.1180 |
| Minimum Hole Diameter (Decimal Inch) | 0.3150 |
| Maximum Hole Depth (Decimal Inch) | 0.5910 |
| Overall Length (Decimal Inch) | 1.3780 |
| Finish/Coating | TiN |
| Radius (Decimal Inch) | 0.0060 |
| Manufacturer Grade | T125 |
