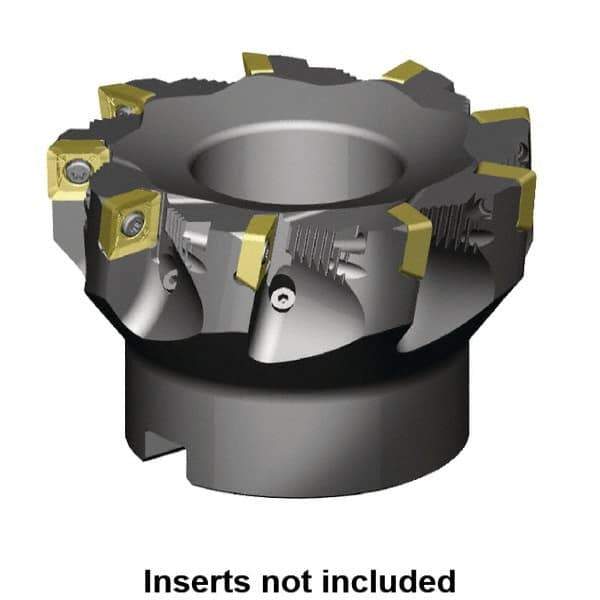

Kennametal - 4" Cut Diam, 1" Arbor Hole, 11mm Max Depth of Cut, 88.5° Indexable Chamfer & Angle Face Mill - 7 Inserts, SD_T43_PD_N__Z Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series KSSZR
Item #: 77460004
Brand: Kennametal
Model #: 3448916
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 88.5 |
| Overall Height (Decimal Inch) | 2.5000 |
| Insert Compatibility | SD_T43_PD_N__Z |
| Series | KSSZR |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | KSSZR |
| Number of Flutes | 7 |
| Hub Diameter (Decimal Inch) | 3.3750 |
| Maximum RPM | 14460 |
| Cutting Direction | Right Hand |
| Pitch | Coarse |
