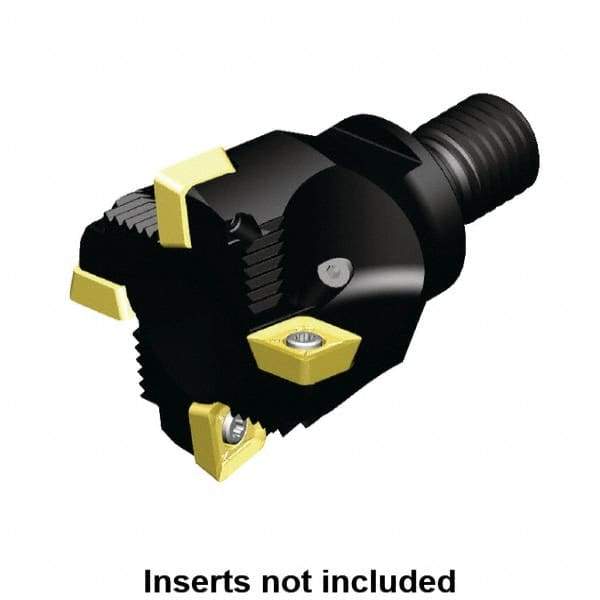

Kennametal - 40mm Cut Diam, 11mm Max Depth of Cut, Indexable Plunge End Mill - M16 Modular Connection, SD.T 43.. Insert Style, Through Coolant
Item #: 77460244
Brand: Kennametal
Model #: 3064110
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.0 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 3 |
| Insert Style | SD.T 43.. |
| Number of Flutes | 3 |
| Overall Length Projection (mm) | 50.0 |
| Coolant Hole Diameter (mm) | 2.00 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Maximum RPM | 22980 |
| ISO Number | 40M3R050M16SSD12PL |
| End Mill Type | End Mill |
