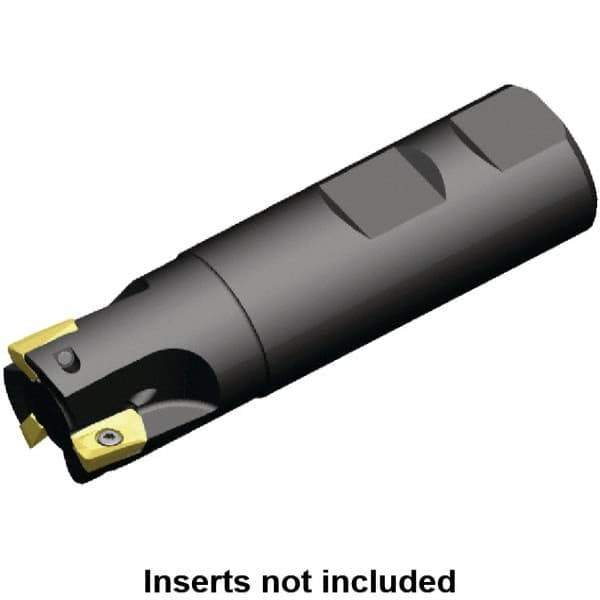

Kennametal - 25mm Cut Diam, 10mm Max Depth of Cut, 25mm Shank Diam, 89mm OAL, Indexable Square Shoulder End Mill - EC10.., EP10.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant
Item #: 77460764
Brand: Kennametal
Model #: 3744636
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 89.00 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | Mill 1-10 |
| Number of Flutes | 3 |
| Head Length (mm) | 32.00 |
| Weldon Flat | Yes |
| Insert Compatibility | EC10.., EP10.. |
| Maximum RPM | 40000 |
