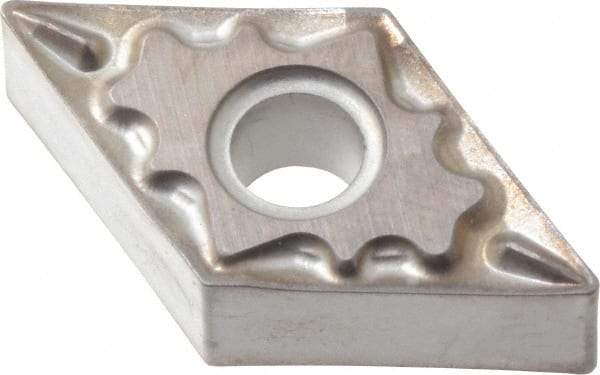

Kyocera - DNMG331 HQ Grade TN60 Cermet Turning Insert - TiCN/NbC Finish, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 77496370
Brand: Kyocera
Model #: 8801060
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 331 |
| Material | Cermet |
| Length (Decimal Inch) | 0.4330 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TN60 |
| Coating | TiCN/NbC |
| Material Grade | C2/C3/C4/C6/C7/C8 |
| Chip Breaker | HQ |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 0 |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
