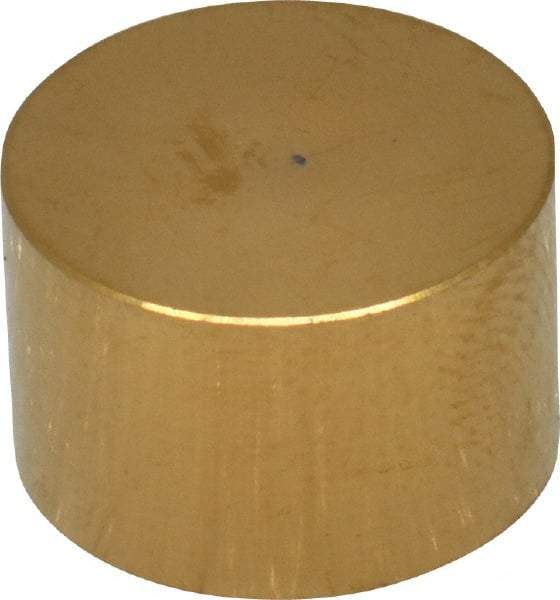

Kyocera - RNG45T00625 T00625 Grade A66N Ceramic Turning Insert - Al2O3/TiC/TiN Finish, Round, 1/2" Inscr Circle, 5/16" Thick
Item #: 77497535
Brand: Kyocera
Model #: 8802107
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RNG |
| Insert Size | 45T00625 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Manufacturer's Grade | A66N |
| Coating | Al2O3/TiC/TiN |
| Material Grade | C4 |
| Chip Breaker | T00625 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Shape | Round |
