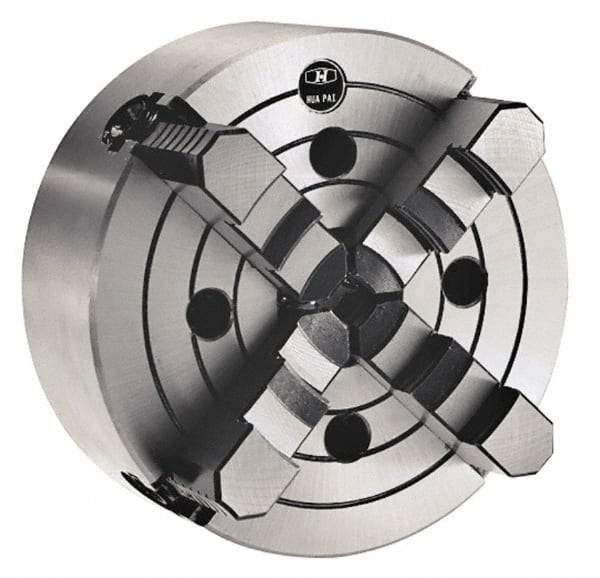

Interstate - 4 Jaws, 3" Diam, Independent Manual Lathe Chuck - Plain Back Mount Spindle, 0.8661" Through Hole Diam, Cast Iron
Item #: 77752004
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Independent chucks are designed with jaws that move independantly of one another.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Independent |
| Nominal Chuck Size | 3 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 22.00 |
| Through-Hole Diameter (Decimal Inch) | 0.8661 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (mm) | 80.00 |
| Chuck Diameter (Decimal Inch) | 3.1496 |
| Jaw Height (Inch) | 1/2 |
| Adjustable | No |
| Body Length (Inch) | 1-21/32 |
| Includes | (2) Sets of Hard Solid Jaws |
