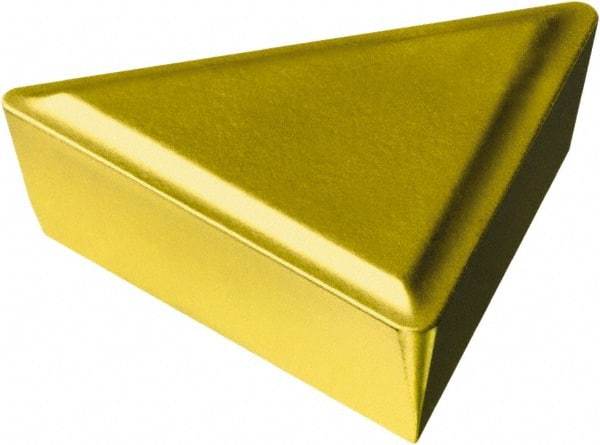

Sandvik Coromant - TPMR321 53 Grade 235 Carbide Turning Insert - TiCN/TiN Finish, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 77764553
Brand: Sandvik Coromant
Model #: 5754975
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMR |
| Insert Size | 321 |
| Material | Carbide |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Chip Breaker | 53 |
| ISO Number | TPMR160304235 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Manufacturers Catalog Number | 5754975 |
| Primary Workpiece Material | M |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max S |
| Maximum Depth of Cut (mm) | 16.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.6339 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
