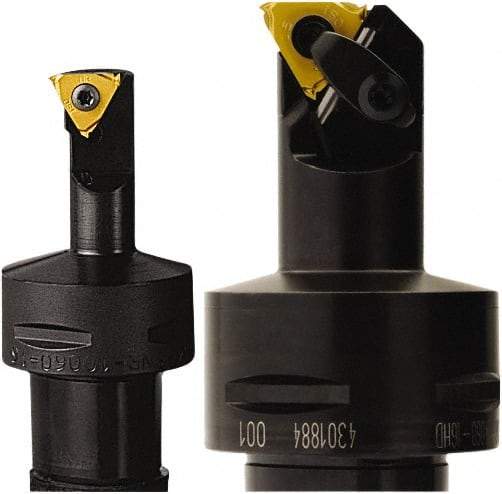

Seco - Internal Thread, Right Hand Cut, 50mm Shank Width x 50mm Shank Height Indexable Threading Toolholder - 22NR Insert Compatibility, CN Toolholder, Series Snap Tap
Item #: 77892958
Brand: Seco
Model #: 30444
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 50.00 |
| Shank Width/Diameter (Decimal Inch) | 1.9685 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | 22NR |
| Series | Snap Tap |
| Toolholder Style | CN |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 17.80 |
| Center to Cutting Edge (Decimal Inch) | 0.7008 |
| Head Length (mm) | 70.00 |
| Head Length (Decimal Inch) | 2.7559 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
