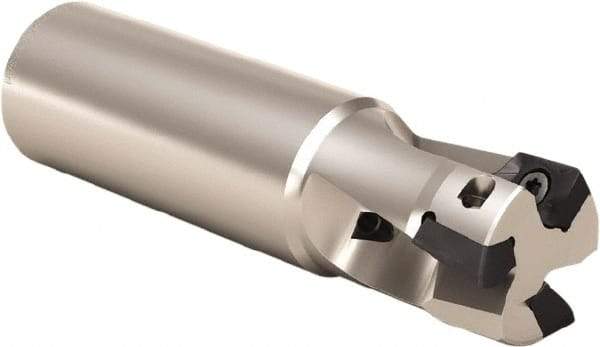

Seco - 40mm Cut Diam, 17mm Max Depth of Cut, 32mm Shank Diam, 210mm OAL, Indexable Square Shoulder End Mill - XO.. 1806 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Power Turbo
Item #: 77895167
Brand: Seco
Model #: 53980
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 210.00 |
| Overall Length/Projection (Decimal Inch) | 8.2677 |
| Lead Angle | 90 |
| Series | Power Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Weldon Flat | No |
| Insert Compatibility | XO.. 1806 |
| Shank Length (Decimal Inch) | 6.4961 |
| Shank Length (mm) | 165.00 |
| Maximum RPM | 9900 |
