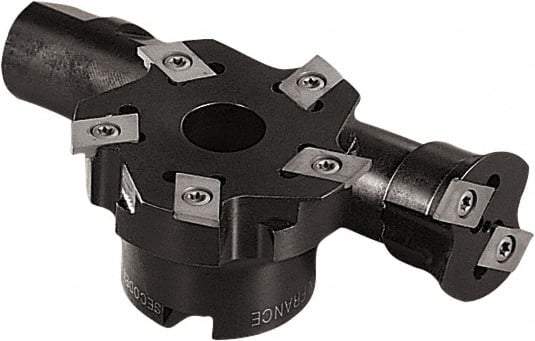

Seco - Shank Connection, 0.0433" Cutting Width, 24mm Cutter Diam, Indexable Slotting Cutter - 0.7874" Shank Diam, R335.15 Toolholder, R335.15-13 Insert, Right Hand Cutting Direction
Item #: 77896983
Brand: Seco
Model #: 02642
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (mm) | 1.10 |
| Cutting Width (Decimal Inch) | 0.0433 |
| Cutter Diameter (mm) | 24.00 |
| Cutter Diameter (Decimal Inch) | 0.9449 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Toolholder Style | R335.15 |
| Series | R335.15 |
| Insert Style | R335.15-13 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 1 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 28200 |
| Minimum Cutting Width (Inch) | 1.1000 |
| Maximum Cutting Width (Decimal Inch) | 0.1043 |
| Maximum Cutting Width (mm) | 2.65 |
| Radius | No |
| Rake | Neutral |
| Shank Length (Decimal Inch) | 1.9685 |
| Weldon Flat | Yes |
| Complete Insert Compatibility1 | R335.15-13110FG-E08; R335.15-13130FG-E08; R335.15-13160FG-E08; R335.15-13185FG-E08; R335.15-13185FG-M10; R335.15-13215FG-E08; R335.15-13215FG-M10; R335.15-13265FG-E08; R335.15-13265FG-M10 |
