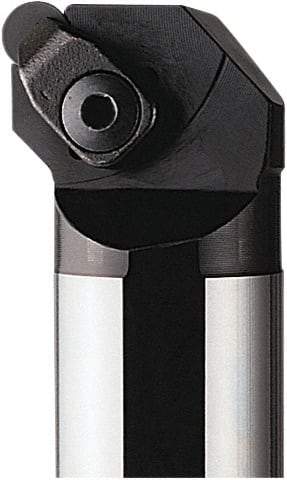

Seco - 32mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, S-CRSN Indexable Boring Bar - 37mm Max Bore Depth, RN.N 0603.. Insert, Clamp Holding Method
Item #: 77900058
Brand: Seco
Model #: 69272
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-CRSN |
| Series | Clamp Lock |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 37.00 |
| Maximum Bore Depth (Decimal Inch) | 1.4567 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | RN.N 0603.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Lead Angle | 45 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | -6 |
| Complete Insert Compatibility | RNGN 060300E; RNGN 060300F-LF; RNGN 060300S; RNGN 060300S-01525; RNGN 060300S-01020; RNGN 060300S-01525-LF; RNGN 060300S-02020-LF; RNGN 060300S-LF; RNMN 060300S |
| Toolholder Material | Steel |
