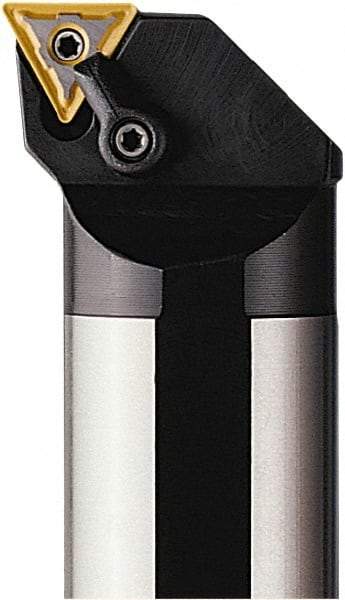

Seco - 40mm Min Bore Diam, 300mm OAL, 32mm Shank Diam, S-MTFN Indexable Boring Bar - 50mm Max Bore Depth, TN.. 1604.. Insert, Pin & Clamp Holding Method
Item #: 77903169
Brand: Seco
Model #: 02273
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-MTFN |
| Series | Multi-Option |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Maximum Bore Depth (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | TN.. 1604.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 90 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 15.87 |
| Insert Inscribed Circle (Decimal Inch) | 0.6248 |
| Rake Angle | -5 |
| Complete Insert Compatibility | TNGA 160404S-01525-L1; TNGA 160404S-L0-C; TNGA 160408S-01525-L1-C; TNGA 160408S-01525-L1-V; TNGA 160408S-02020-L1-C; TNGA 160408S-L0-C; TNGA 160412S-01525-L1-C; TNMA 160404; TNMA 160408; TNMA 160412; TNMA 160416; TNMG 1; TNMG 160404-FF1; TNMG 160404-FF2 |
| Toolholder Material | Steel |
