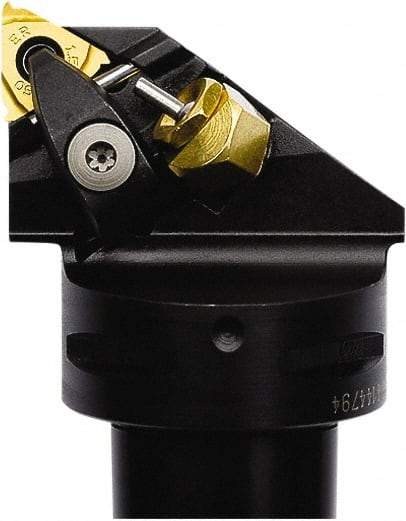

Seco - External Thread, Left Hand Cut, 50.01mm Shank Width x 50.01mm Shank Height Indexable Threading Toolholder - 22EL Insert Compatibility, CE Toolholder, Series Snap Tap
Item #: 77904662
Brand: Seco
Model #: 21757
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 50.01 |
| Shank Width/Diameter (Decimal Inch) | 1.9690 |
| Shank Height (mm) | 50.01 |
| Shank Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | 22EL |
| Series | Snap Tap |
| Toolholder Style | CE |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Head Length (mm) | 59.99 |
| Head Length (Decimal Inch) | 2.3620 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
