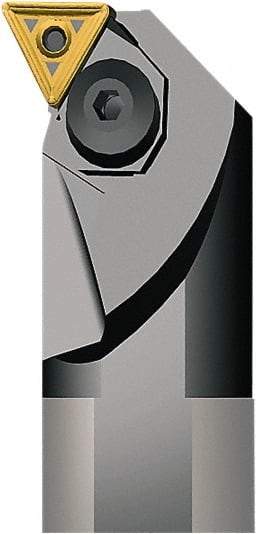

Seco - 32mm Min Bore Diam, 250mm OAL, 25mm Shank Diam, A-PTFN Indexable Boring Bar - 35mm Max Bore Depth, TN.. 1604.. Insert, Pin Lock Assembly Holding Method
Item #: 77904878
Brand: Seco
Model #: 12501
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PTFN |
| Series | Pin Lock |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 35.00 |
| Maximum Bore Depth (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | TN.. 1604.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 90 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | -6 |
| Complete Insert Compatibility | TNGA 160404S-01525-L1; TNGA 160404S-L0-C; TNGA 160408S-01525-L1-C; TNGA 160408S-01525-L1-V; TNGA 160408S-02020-L1-C; TNGA 160408S-L0-C; TNGA 160412S-01525-L1-C; TNMA 160404; TNMA 160408; TNMA 160412; TNMA 160416; TNMG 1; TNMG 160404-FF1; TNMG 160404-FF2 |
| Toolholder Material | Steel |
