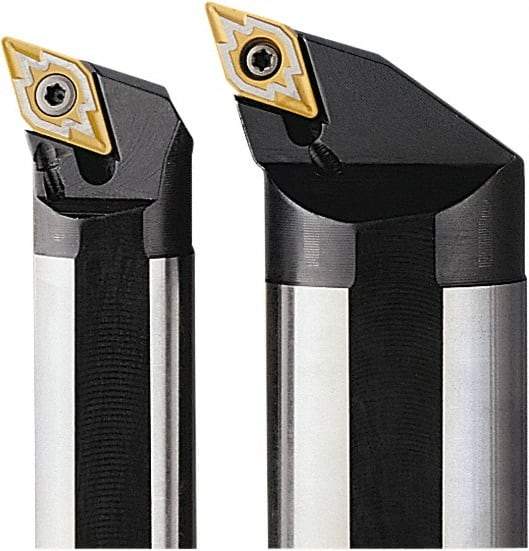

Seco - 32mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, A-PDQN Indexable Boring Bar - 35mm Max Bore Depth, Pin Holding Method
Item #: 77904886
Brand: Seco
Model #: 78192
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PDQN |
| Series | Pin Lock |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 35.00 |
| Maximum Bore Depth (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin |
| Rake | Negative |
| Lead Angle | 107.5 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | -5 |
| Toolholder Material | Steel |
