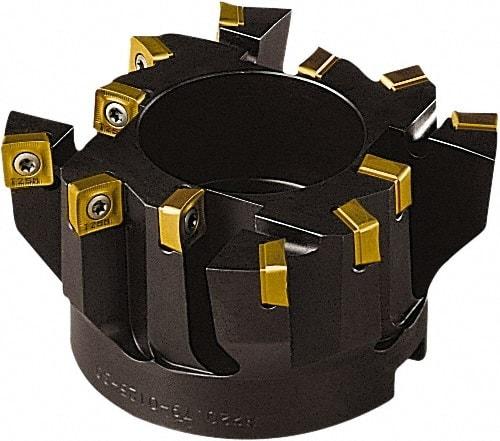

Seco - 160mm Cut Diam, 40mm Arbor Hole, 40mm Max Depth of Cut, 85° Indexable Chamfer & Angle Face Mill - 16 Inserts, SC.. 1206 Insert, Right Hand Cut, 16 Flutes, Series R220.79
Item #: 77910719
Brand: Seco
Model #: 94578
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 85 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SC.. 1206 |
| Series | R220.79 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Number of Flutes | 16 |
| Cutting Rake Angle | 0 |
| Rake | Neutral |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum RPM | 5600 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SCET 120612T-M11; SCET 120612T-M14; SCET 120612T-MD15; SCET 120612T-ME10; SCET 120630T-M14; SCET 120630T-MD16; SCET 120631T-M11; SCET 120631T-ME10; SCEX 120612-E08; SCEX 120660T-M14; SCMT 120612T-M14 |
