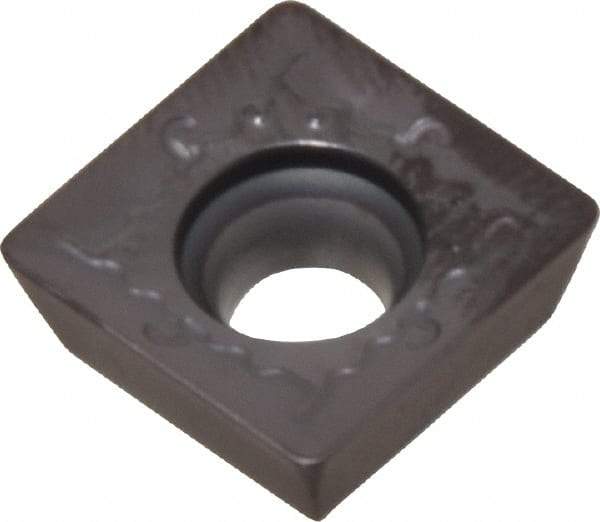

Tungaloy - SDMT1204 MJ Grade AH330 Carbide Milling Insert - TiAlN Finish, 0.187" Thick, 1/2" Inscribed Circle, 0.031" Corner Radius
Item #: 78069861
Brand: Tungaloy
Model #: 6806261
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDMT |
| Insert Size | 1204 |
| Material | Carbide |
| Manufacturer's Grade | AH330 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | MJ |
| ISO Number | SDMT1204PDSR-MJ |
