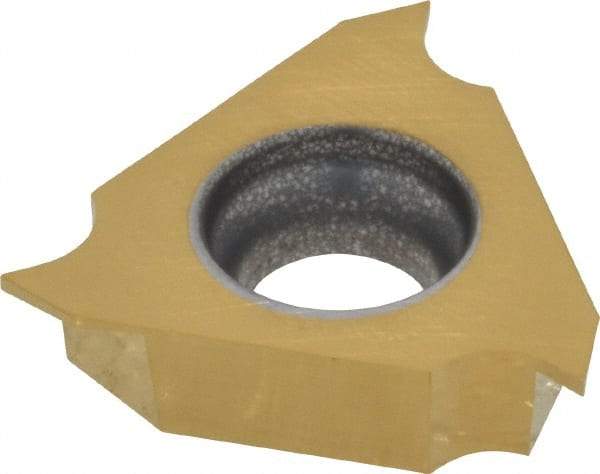

Tungaloy - 3050JTGR F Grade J740, 0.5mm Cutting Width Carbide Grooving Insert - 1.1mm Max Depth of Cut, Right Hand, 0.03mm Corner Radius, TiN Finish
Item #: 78070984
Brand: Tungaloy
Model #: 6804977
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | JTGR |
| Insert Size | 3050 |
| Material | Carbide |
| Cutting Width (mm) | 0.50 |
| Cutting Width (Decimal Inch) | 0.0197 |
| Maximum Depth of Cut (mm) | 1.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.0433 |
| Material Grade | Micrograin |
| Manufacturer's Grade | J740 |
| Coating | TiN |
| Insert Hand | Right Hand |
| Lead Angle | 2 |
| Chipbreaker | F |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.03 |
| Corner Radius (Decimal Inch) | 0.0012 |
| Coating Process | PVD |
| Series | J |
| Overall Width (mm) | 3.18 |
