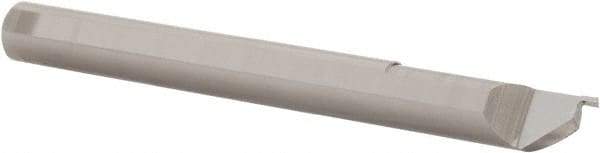

Scientific Cutting Tools - 0.021" Groove Width, 0.26" Min Hole Diam, 0.05" Max Hole Depth, Face Grooving Tool - 2-1/2" OAL, Solid Carbide, Uncoated
Item #: 78274453
Brand: Scientific Cutting Tools
Model #: FG250-020
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Groove Width (Decimal Inch) | 0.0210 |
| Minimum Hole Diameter (Decimal Inch) | 0.2600 |
| Maximum Hole Depth (Decimal Inch) | 0.0500 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Finish/Coating | Uncoated |
| Material Grade | Submicron |
