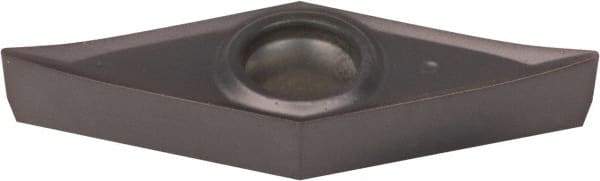

Kennametal - VBGT220.5 HP Grade KCU10 Carbide Turning Insert - AlTiN Finish, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 0.008" Corner Radius
Item #: 78487915
Brand: Kennametal
Model #: 4045335
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBGT |
| Insert Size | 220.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | HP |
| Hole Diameter (Decimal Inch) | 0.2000 |
| ISO Number | VBGT110302HP |
| Relief Angle | 5 |
| Manufacturers Catalog Number | VBGT2205HP |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shape | Diamond |
