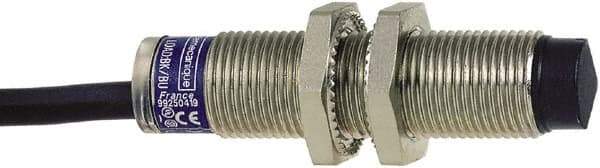

Telemecanique Sensors - NPN, PNP, 4mm Detection, Cylinder, Inductive Proximity Sensor - 2 Wires, IP68, 24 to 210 VDC, 24 to 240 VAC @ 50/60 Hz, M12x1 Thread, 55mm Long
Item #: 78493673
Brand: Telemecanique Sensors
Model #: XS2M12MA250
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO |
| Output Type | NPN; PNP |
| Connector Type | Cable |
| Number of Wires | 2 |
| Detection Distance (mm) | 4.00 |
| Maximum Voltage | 24-210 VDC; 24-240 VAC @ 50/60 Hz |
| Ingress Protection Rating | IP68 |
| Maximum Load Capacity (mA) | 5-200 |
| Response Frequency (Hz) | 25; 4000 |
| Thread Size | M12x1 |
| Housing Material | Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 55 |
| Standards Met | CCC; CSA; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL |
