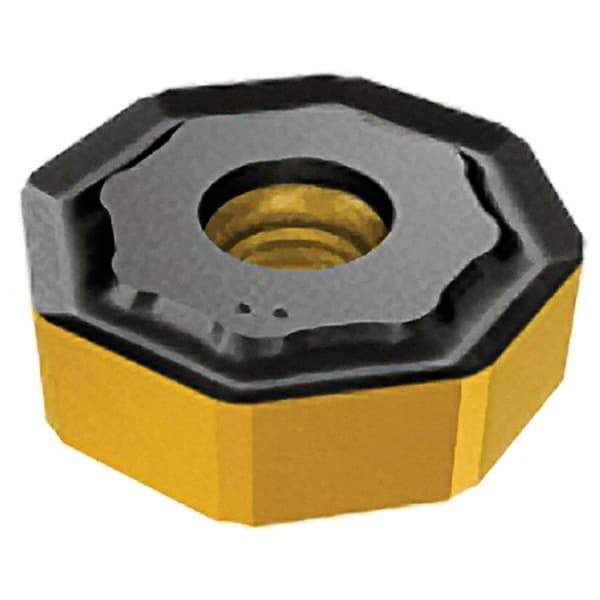

Iscar - ONHU080600 PL Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.2362" Thick, 0.7953" Inscribed Circle, 1.3mm Corner Radius
Item #: 78588175
Brand: Iscar
Model #: 5604873
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONHU |
| Insert Size | 080600 |
| Material | Carbide |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Inscribed Circle (Decimal Inch) | 0.7953 |
| Thickness (Decimal Inch) | 0.2362 |
| Corner Radius (Decimal Inch) | 0.0512 |
| Corner Radius (mm) | 1.30 |
| Relief Angle | 0.000 |
| Rake Angle | 26 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Chipbreaker | PL |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| ISO Number | ONHU 080600N-PL |
