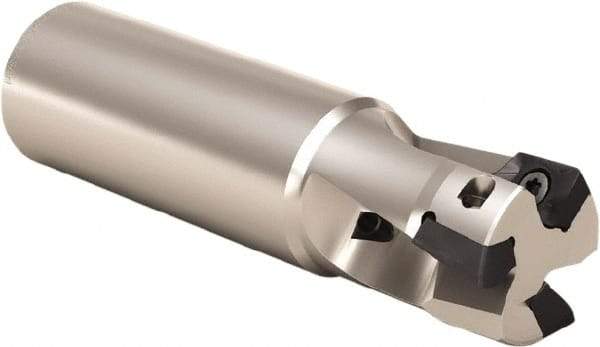

Seco - 1" Cut Diam, 0.669" Max Depth of Cut, 1" Shank Diam, 7" OAL, Indexable Square Shoulder End Mill - XO.X 1806 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Power Turbo
Item #: 78858073
Brand: Seco
Model #: 55595
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 7.0000 |
| Lead Angle | 90 |
| Series | Power Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6690 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (Decimal Inch) | 1.5000 |
| Weldon Flat | No |
| Insert Compatibility | XO.X 1806 |
| Shank Length (Decimal Inch) | 5.5000 |
| Maximum RPM | 13800 |
