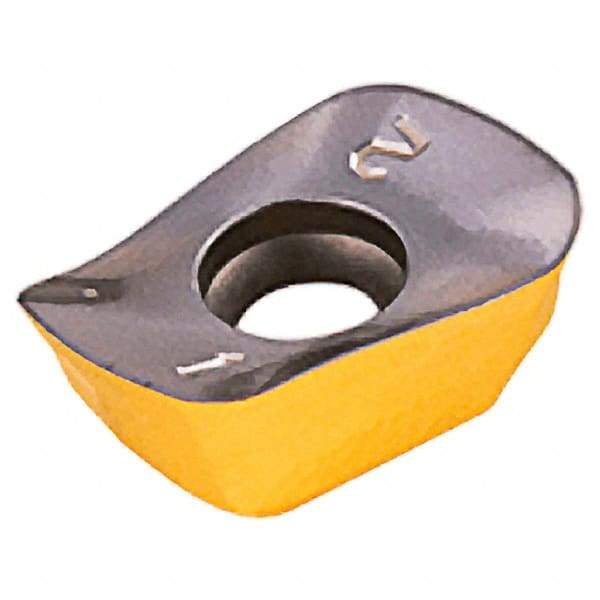

Iscar - ADCT1505 FF Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.24" Thick, 2.7mm Corner Radius
Item #: 79389433
Brand: Iscar
Model #: 5606374
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADCT |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.3898 |
| Length (Decimal Inch) | 0.6220 |
| Thickness (Decimal Inch) | 0.2400 |
| Corner Radius (Decimal Inch) | 0.1063 |
| Corner Radius (mm) | 2.70 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Left Hand |
| Chipbreaker | FF |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| ISO Number | ADCT 1505R8PL-FF |
