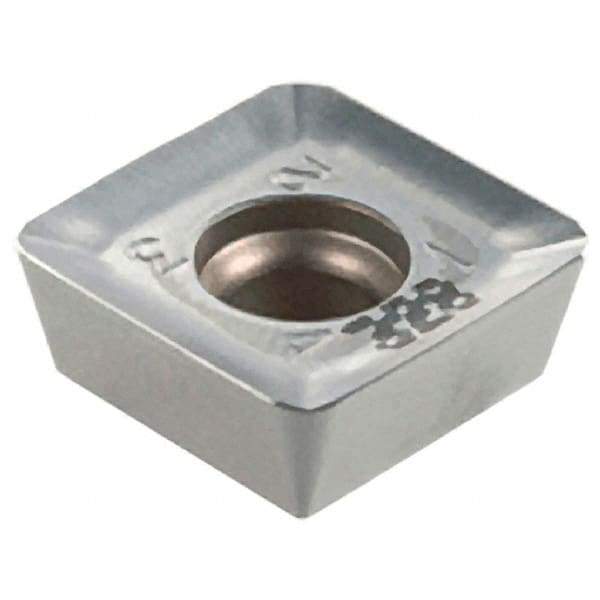

Iscar - QDCT120524 Grade IC328 Carbide Milling Insert - TiCN Finish, 0.1937" Thick, 1/2" Inscribed Circle, 2.4mm Corner Radius
Item #: 79469557
Brand: Iscar
Model #: 5693820
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QDCT |
| Insert Size | 120524 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1937 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Corner Radius (mm) | 2.40 |
| Rake Angle | 24 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 10.00 |
| ISO Number | QDCT 120524-PDN |
