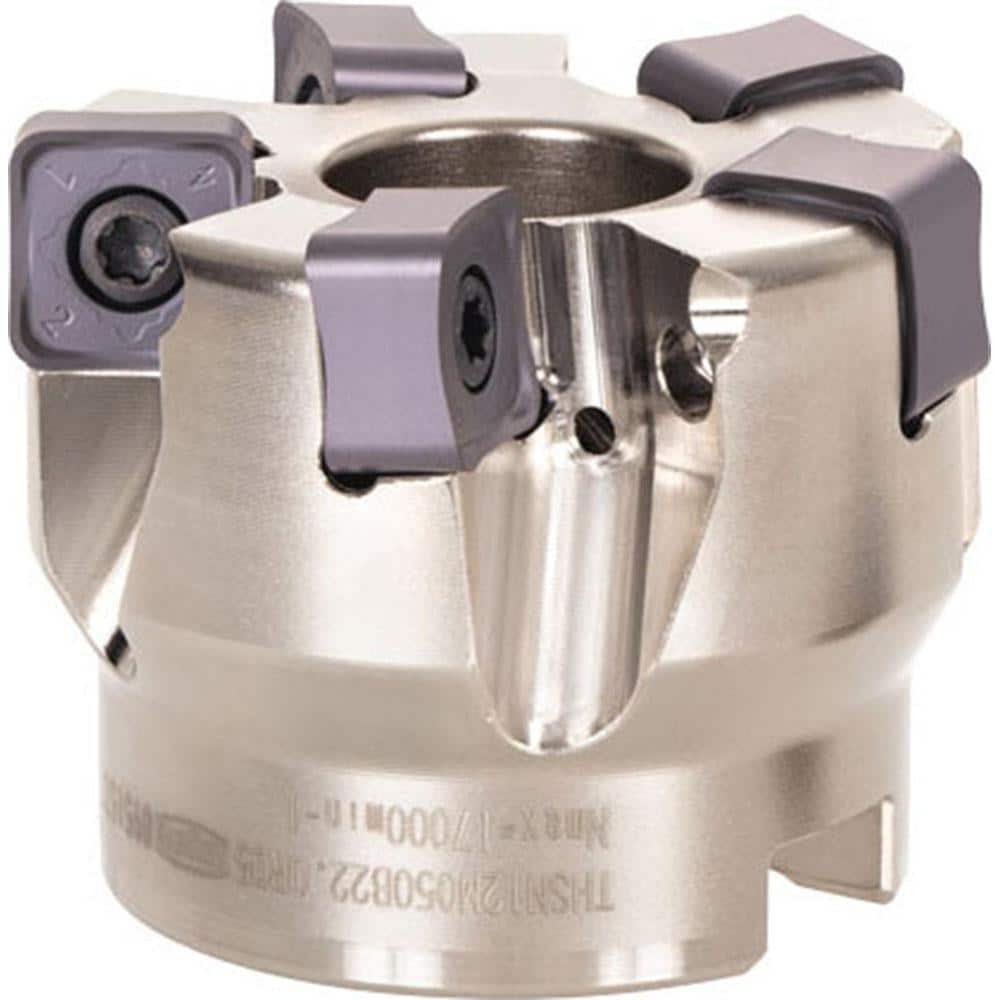

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (mm): 80.00; Maximum Cutting Diameter (mm): 80.60; Maximum Depth of Cut (mm): 9.50; Arbor Hole Diameter (mm): 25.40; Lead Angle: 88; Compatible Insert Size Code: SNMU120608HNEN-MM; Cutter Styl
Item #: 79521902
Brand: Tungaloy
Model #: 6777928
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 80.60 |
| Maximum Depth of Cut (mm) | 9.50 |
| Arbor Hole Diameter (mm) | 25.40 |
| Lead Angle | 88 |
| Compatible Insert Size Code | SNMU120608HNEN-MM |
| Cutter Style | THSN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive (Axial); Negative (Radial) |
| Rake Angle | 3 |
| Series | THSN |
| Hub Diameter (mm) | 58.00 |
| Keyway Width (mm) | 9.50 |
| Keyway Width (Inch) | 9-1/2 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Tool Application | Facing |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 8 |
| Coolant Through | Yes |
