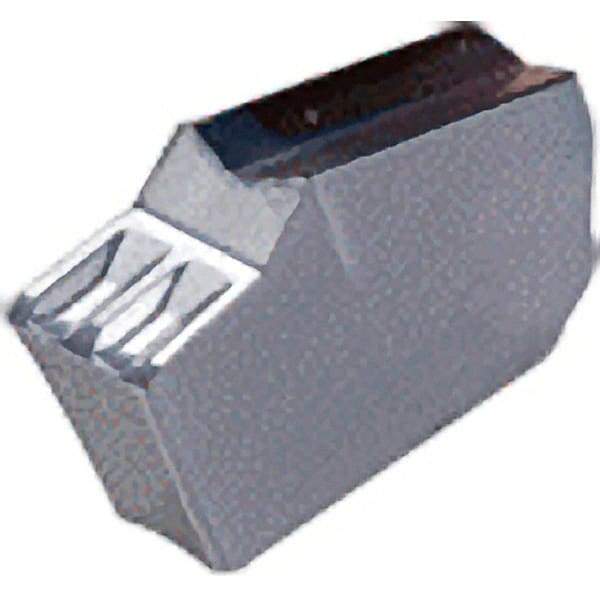

Iscar - GTN48 W IC354 Grade, 0.189" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.011" Cnr Rad, TiCN Coated, Single End
Item #: 80692841
Brand: Iscar
Model #: 6002713
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GTN |
| Insert Size | 48 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 4.80 |
| Cutting Width (Decimal Inch) | 0.1890 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC354 |
| Coating | TiCN |
| Relief Angle | 7 |
| Chipbreaker | W |
| Full Radius | No |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0110 |
| Corner Radius (mm) | 0.28 |
| Insert Hand | Neutral |
| Insert Seat Size | 4.8 |
