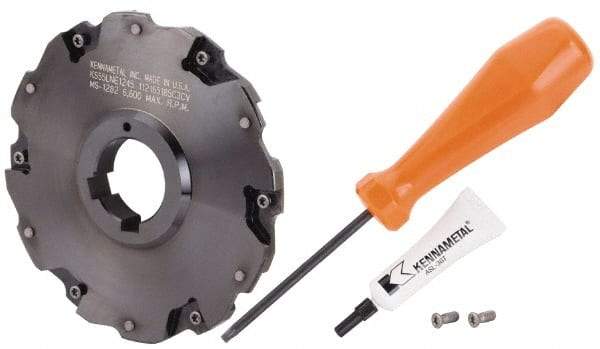

Kennametal - Arbor Hole Connection, 5/16" Cutting Width, 1.435" Depth of Cut, 5" Cutter Diam, 1-1/4" Hole Diam, 6 Tooth Indexable Slotting Cutter - 90° LN Toolholder, LNE 1245... Insert
Item #: 80744592
Brand: Kennametal
Model #: 1025896
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 7.94 |
| Cutting Width (Decimal Inch) | 0.3125 |
| Cutting Width (Inch) | 5/16 |
| Maximum Depth of Cut (mm) | 38.10 |
| Maximum Depth of Cut (Decimal Inch) | 1.4350 |
| Cutter Diameter (mm) | 127.00 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 6 |
| Toolholder Style | 90 LN |
| Series | LN |
| Insert Style | LNE 1245... |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Maximum RPM | 6600 |
| Minimum Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Cutting Width (Decimal Inch) | 0.3510 |
| Maximum Cutting Width (mm) | 8.92 |
| Hub Diameter (mm) | 47.75 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Cutter Body Width (mm) | 12.70 |
| Cutter Body Width (Decimal Inch) | 0.5000 |
