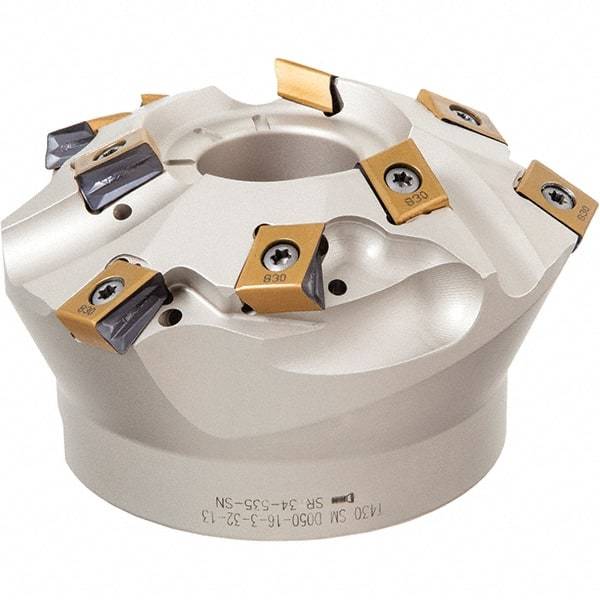

Iscar - 3.9" Cut Diam, 1-1/4" Arbor Hole, 0.94" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 9 Inserts, T490 LN.. Insert, Right Hand Cut, Through Coolant, Series Helitang
Item #: 80962566
Brand: Iscar
Model #: 3106379
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.9000 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.2500 |
| Insert Compatibility | T490 LN.. |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.9400 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | T445 SM |
| Hub Diameter (Decimal Inch) | 2.5600 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.2500 |
| Complete Insert Compatibility | T490 LNAR 1306PN-R; T490 LNAR 1306PN-R-P; T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS |
