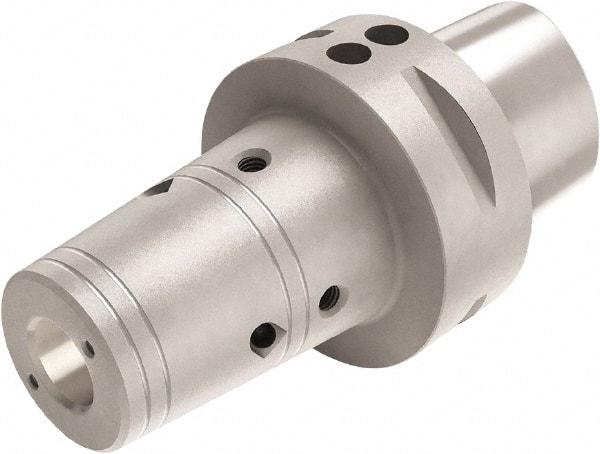

Seco - 12mm Hole Diam, C6 Modular Connection Shrink Fit Tool Holder & Adapter - 80mm Projection, 27mm Nose Diam, 47.5mm Clamping Depth, 40,000 RPM, Through Coolant
Item #: 81024267
Brand: Seco
Model #: 84243
Exact Tooling IR#: 04
Features and Benefits
Modular connections are used in compatible modular tool holder systems and allow for tool changes without removing the tool shank from the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Hole Diameter (Decimal Inch) | 0.4724 |
| Hole Diameter (mm) | 12.00 |
| Projection (mm) | 80.00 |
| Projection (Decimal Inch) | 3.1496 |
| Nose Diameter (mm) | 27.00 |
| Nose Diameter (Decimal Inch) | 1.0630 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 47.50 |
| Clamping Depth (Decimal Inch) | 1.8701 |
| Overall Length (mm) | 118.00 |
| Overall Length (Decimal Inch) | 4.6457 |
| Balanced to (RPM) | 40000 |
